4 Screen Adjustment For Screens Without A Built-In Low Voltage Control 120V Wiring Diagram with Optional Built-In Video Projector Interface Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. Da-Lite Press Releases. Da-Lite Unveils New Rear Projection Product that Ships in a Roll for Easy Handling J Da-Lite Introduces Parallax and Parallax UST J Da-Lite Unveils Wireline Advantage Screens J. Da-Lite's RS Interface and Ethernet Adapter Provides the Freedom of Network Control The RS Interface is an adapter for low voltage controls used on Da-Lite motorized screens and projector lifts.

Supplied drive is only intended for use in Da-Lite screen models ... 220V Wiring Diagram with Operation & Limit Adjustment. Wall Switch.

Da lite motorized screen wiring diagram

Da Lite Projector Screen Wiring Diagram - wiring diagram is a simplified all right pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the capability and signal friends along with the devices. To avoid overheating the motor, do not continually retract and lower the screen for over 4 minutes at a time. If the motor overheats, it will need a cool down time of 2 minutes. The motor does not need any lubricants. The drop and retract limit of the screen is factory preset to an optimal configuration. Please ask our company da lite motorized screen wiring diagram - What is a Wiring Diagram? A wiring diagram is an easy visual representation with the physical connections and physical layout of the electrical system or circuit. It shows how the electrical wires are interconnected and can also show where fixtures and components could be attached to the system.

Da lite motorized screen wiring diagram. Motor is intended for use in Da-Lite screens incorporating a 3.00" and 3.25" roller diameter. 1. Make sure motor collar is on motor. 2. Collars keyway must line up with the key on the motor. 3. Secure motor drive wheel on output shaft of motor and insert retaining clip. Screen And Roller Assembly Installation (continued) The wiring of a device such as a motorized screen would be connected to the WeMo Maker for it to be the source of control. Please note that the electrical rating of the WeMo Maker relay must be compatible with the motorized projection screen switch circuit to avoid damage to the WeMo Maker. 4. Screen Adjustment For Screens Without A Built-In Low Voltage Control. 120V Wiring Diagram with Optional Built-In Video Projector Interface. Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. Collection of da lite motorized screen wiring diagram. A wiring diagram is a simplified conventional photographic depiction of an electric circuit. It shows the parts of the circuit as streamlined shapes, and the power and signal connections between the devices.

Assortment of da lite motorized screen wiring diagram. A wiring diagram is a streamlined traditional pictorial representation of an electrical circuit. It shows the parts of the circuit as streamlined shapes, as well as the power and signal connections between the gadgets. Da-Lite Cosmopolitan Electrol User Manual • Cosmopolitan, Electrol, Installation 120v wiring diagram • Da-Lite Projectors. Cube Relay Wiring Diagram; Curtis Controller Wiring Diagram; Da Lite Motorized Screen Wiring Diagram; Danfoss Pressure Switch Wiring Diagram; Dayton Capacitor Start Motor Wiring Diagram; Dc Circuit Breaker Wiring Diagram; Deck Lighting Wiring Diagram; Defrost Termination Fan Delay Switch Wiring Diagram; Delco Electronics Radio Wiring Diagram Detailed dimensional drawings, wiring diagrams and installation instructions available. DA-LITE SCREEN, North Detroit St., Warsaw, IN , Two methods of hardwiring a single motorized screen to a wall mounted up/down switch Diagram showing Vutec's IR-1CHANKIT and screen connections. wiring diagram for proper hook up. .

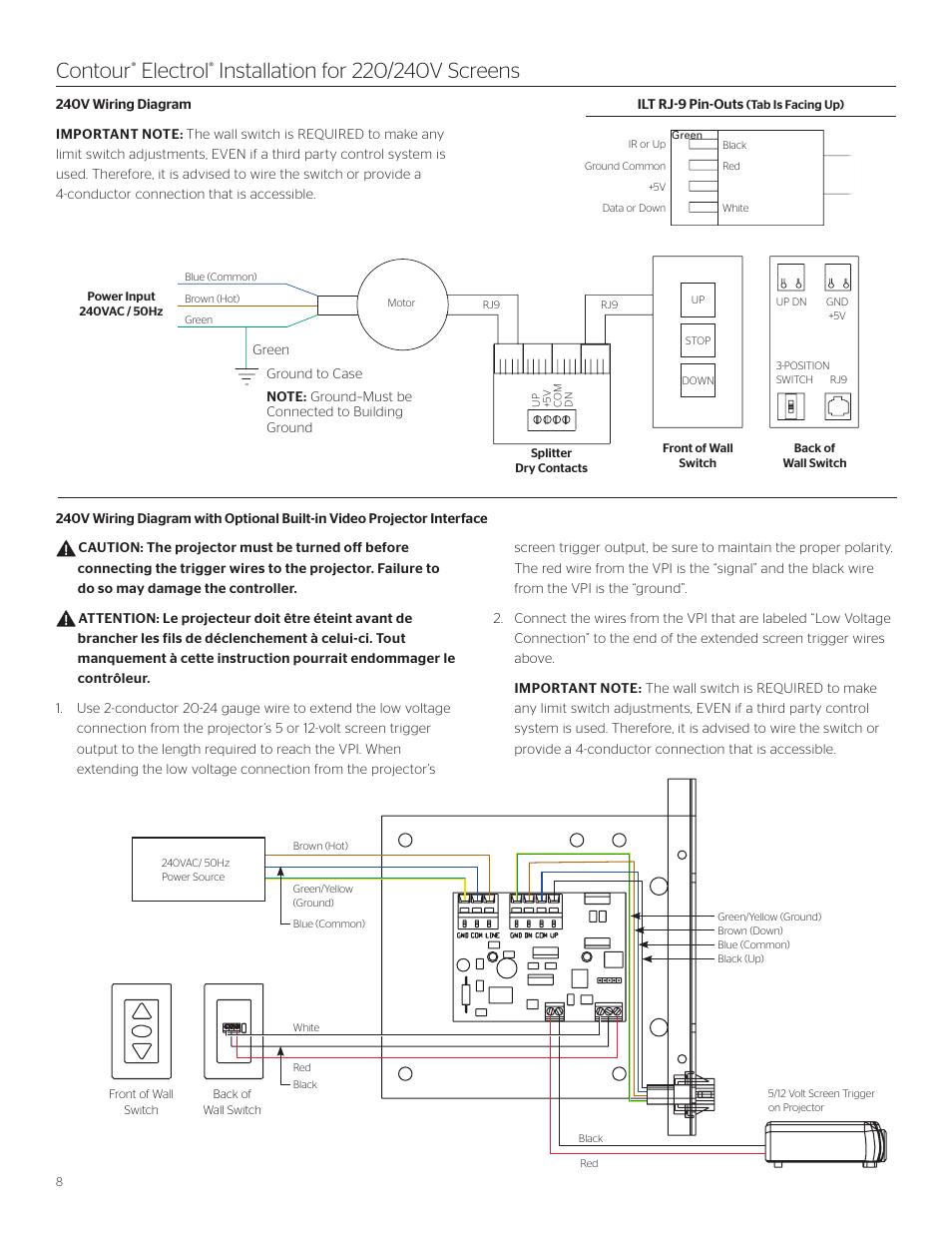

on page 5 are for standard controls; the diagrams on page 6 ... Contact Da-Lite at 800-622-3737 if door motor needs adjustment. ... 220/240V Wiring Diagram. NOTE: This screen can only be controlled by a single 120VAC or 240VAC wall switch. To use multiple switches, an optional low voltage control must be used. 240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH: da-Lite offers two styles of 240 volt wall switches for standard operation. Please see wiring diagram in wall switch boxes included with ... Size: 84.60 KB. Dimension: 657 x 587. See also Da Lite Motorized Screen Wiring Diagram Gallery. DOWNLOAD. Wiring Diagram Pictures Detail: Name: emerson motor wiring diagram - Inspirational Emerson Pump Motor Wiring Diagram Wonderful Psc The Best. File Type: JPG. Source: wiringdiagramstemplates.me. Size: 342.69 KB. Motorized Screen Wiring 11 W iring Diagram For V utec Vision XVM4 V utec's Vision XVM4 multi-aspect ratio masking screen is a rolldown motorized masking screen with top and bottom masking panels. The wiring diagram above illustrates how the dual motor masking system connects to the control modules.

Diy Es Elite 3 Button Motorized Screen Switch Youtube

No information is available for this page.Learn why30 pages

Downloads Monoprice Com

View and Download Da-Lite ExecutiveElectrol instruction book online. ExecutiveElectrol projection screen pdf manual download. Also for: Executive electrol.

Wall Switch Ss 1r White Draper Inc

3-conductor 20-24 gauge wire can be used in place of the supplied RJ-14 cable to connect the wall switch. Connect the BUS terminals on the wall switch to the corresponding BUS terminals on the splitter board. Please contact Da-Lite directly for a wiring diagram: Da-Lite: Tel: 800-622-3737 or 574-267-8101 Email [email protected]

Contour Electrol Da Lite Contour Electrol User Manual Page 8 12

Description: Da Lite Motorized Screen Wiring Diagram Da Lite Motorized Screen with Da Lite Motorized Screen Wiring Diagram, image size 602 X 495 px, and to view image details please click the image.. Here is a picture gallery about da lite motorized screen wiring diagram complete with the description of the image, please find the image you need.

Assetserver Net

da lite motorized screen wiring diagram - What's Wiring Diagram? A wiring diagram is a kind of schematic which uses abstract photographic icons to show all the interconnections of components in a system.

Da Lite Home Projection Motorized Screens For Sale Ebay

Screen Designer * * Forgot Password? Not a member? Login as a Guest for single use or create a unique login to access save features. Guest Login New User Company Information: Dealer Number (optional) Company Name * Contact Name * Address * City * State * Zip * Phone: Fax: Password Recovery: Enter your User Name or Email Address to receive your ...

Da Lite Tensioned Cosmopolitan Electrol User Manual Page 5 8

DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street Post Office Box 137 Warsaw, Indiana 46581-0137 ... 120V WIRING DIAGRAM MOTOR GREEN (GROUND) GREEN (GROUND) GREEN (GROUND) GREEN (GROUND) 240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH: Da-Lite offers two styles of 240 volt wall switches for standard operation. Please see wiring diagram in ...

Schellscenic Com

Founded at the dawn of the motion picture industry, Da-lite Screen Company has been creating trustworthy and affordable projector screens for any need. What makes Da-lite Screens different from competitors is their dedication to quality construction and their vast range of projector screen styles and options.

Da Lite Cosmopolitan Electrol User Manual Page 6 8

If your Advantage Electrol was ordered as a complete unit, the up and down limits were pre-set by Da-Lite. If your screen and roller assembly was ordered separately from the case, or if general adjustment is needed, please follow the steps below and refer to the 120V Wiring Diagram. 1. Locate the wall switch and remove the cover plate from the

Search Manual Com

3002 West Potter Drive Phoenix, Arizona 800-560-8047 Mon-Fri: 6:00am-3:00pm EST sales@da-litescreenstore.com

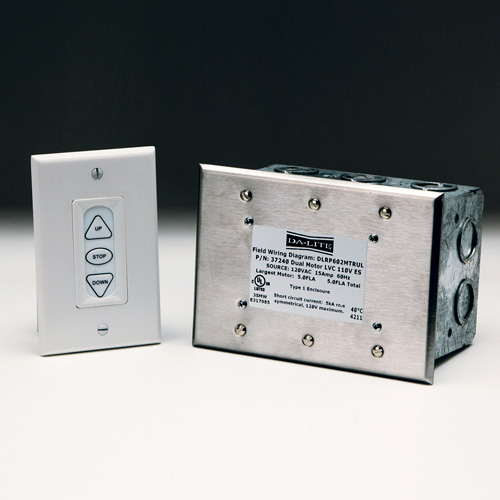

Da Lite Dual Motor Low Voltage Control System Legrand Av
