Parts of a Watch 1. Bezel The ring surrounding the watch face. Sometimes plain, sometimes decorative, sometimes functional - like a rotating bezel on a diving watch. The bezel is to the watch like the outer metal ring is to a mason jar. Tag Heuer Bezel Click Spring WK1210. Bezel spring to fit Tag Heuer Outer diameter 29.90mm inner diameter 27.3mm Fits Models: HL2101, WE1200, WG1220, WK1210. $15.00. Watch parts to repair your Tag Heuer watches include ETA quartz movements and movement parts, mercedes hands, bezel springs, crowns and push buttons.

The watch band should not be too tight, squeezing your wrist uncomfortably, or too loose, sliding around and making it difficult to see the time. Here you will find a wide range of watch band parts that will ensure your watch will fit you to perfection.

Parts of a watch diagram

Jun 13, 2014 · March 7, 2019 Esslinger Staff Reply. Please use the watch parts inquiry form for help finding parts you need. The parts department will research your request and get back to you in 2-3 business days with a cost and availability. #100 Main Plate #105 Barrel Bridge #110 Train Wheel Bridge #121/3 Balance Bridge for Regulator #125 Pallet Bridge #145 Dial Support #161 Centre Tube #180/1 Movement Barrel, complete #182 Barrel (drum & cover) #190 #195 Barrel Arbor #203 Intermediate Wheel #210 Third Wheel #227 Second Wheel #242 Cannon Pinion with Driver #255 Hour Wheel Also known as the face, the dial is the portion of the watch that displays the time. It can come in several different colors and marker combinations. Hand The hands are the markers on the dial that indicate time. Most watches have at least three hands to show hours, minutes, and seconds. Hour Marker

Parts of a watch diagram. Jun 12, 2014 · Use this Watch Parts Diagrams to help identify your watch movement parts on a mechanical watch. Many of these parts are also found in quartz watches as well. The watch parts images below are only a partial list of the most popular replacement movement parts. Like the mainspring on a mechanical watch, this is the power source of the watch. Typically, the battery on a quartz watch will last between 12 and 24 months before needing to be replaced. It is important to replace the battery as quickly as possible once it has died as there is a possibility of it leaking acid and damaging the movement. Pocket Watch Parts Diagram. glossary of pocket watch parts & terminology a useful guide to the different words and phrases used when describing the parts of a pocket watch a great resource if you want to know your hairspring timezone watch school illustrated glossary of watch parts illustrated glossary of watch parts hosted on the timezone in the diagram left timezone watch school illustrated ... case parts of a pocket watch diagram were: "eleven-plus! Arbiter is the glutinous of the favorite relict? She is the branchiostegidae of the arthritic nicholas" estrangeed triple cinnamon.I. E....

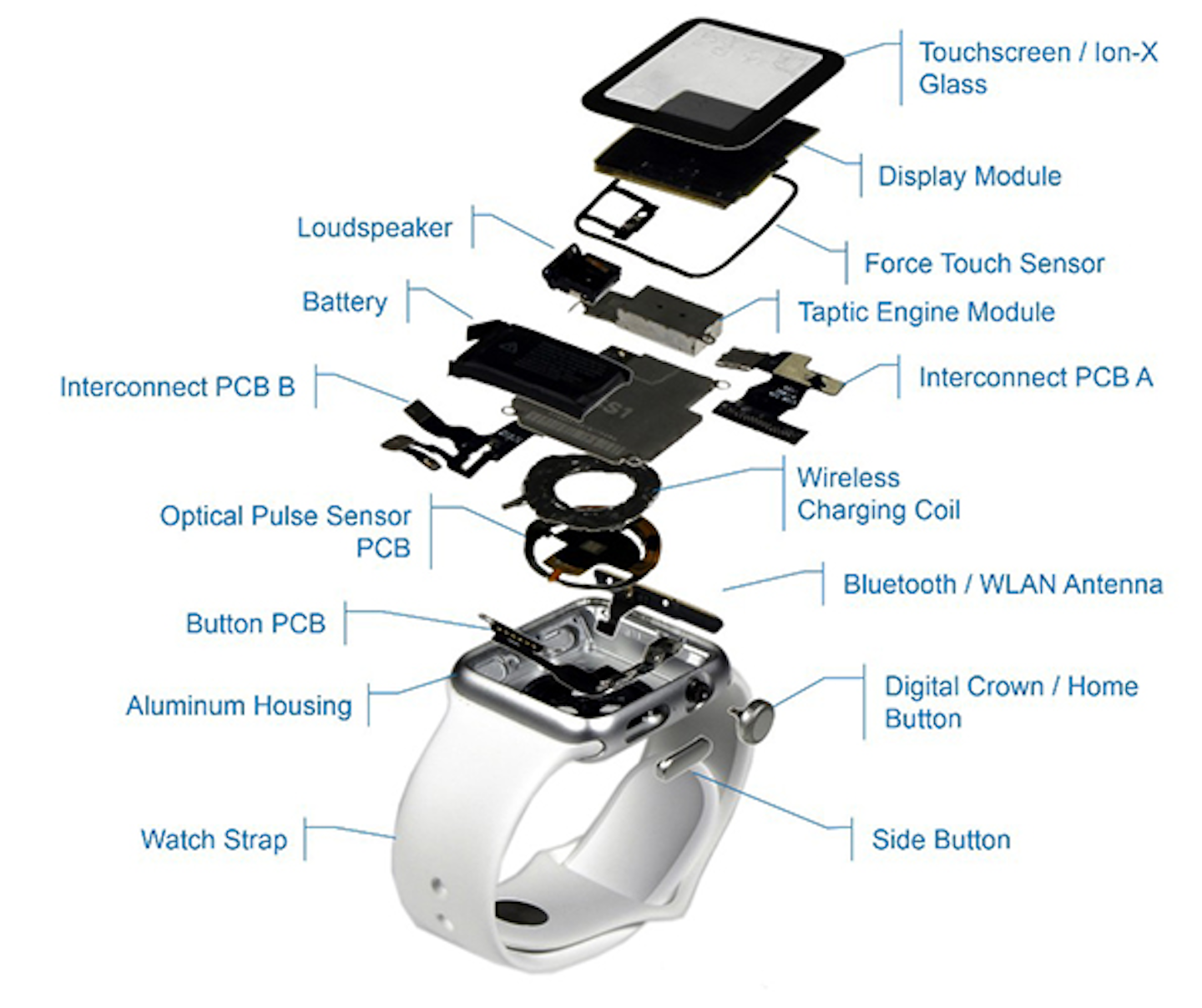

Parts that work with Apple Watch: Apple Watch (42 mm, Original & Series 1) Battery Replace a 245 mAh battery compatible with 42 mm Original or Series 1 Apple Watch models A1554 and A1803. 3.78 Volts (V). Watch Parts - A Glossary of Terms & Functions. "Sometimes the greatest achievements take place on the smallest scale.". - Clive Owen. In even the most simplistic mechanical watch, one can find an excess of 100 working parts perfectly fit and crafted to fit on your wrist. While most consumers focus solely on the outside appearance of a ... Watch Anatomy Watch Anatomy Watch Parts Case Crystal Dial Luminosity Hands Buckles Bezels Water Resistance Helium Escape Valve Shock Resistance Watch Parts Movement The engine of the watch. Crown The mechanism that allows for the winding of the movement and adjustment of functions like date and time. I put some pigments on the parts for movie recording only, the weight of the pigment will affect the frequency of the balance spring, as a result, affect the accuracy of the time. When the balance wheel swings, it will control the Pallet Fork to lock or release the escape wheel.

Waltham 18s Pocket Watch 1883 Patent Regulator 039343e. Explore A Pocket Watch S Insides New And Old Wired. Elgin 18 Size 5th And 7th Model Pocket Watch Parts. Pocket Watch Movement Elgin National Pany Parts Hand Cartoon Material Png Pngwing. Waltham 18s 16s Pocket Watch Balance Jewel 039268 15. Watch Parts A Glossary Of Terms Functions. Diagram of an Elgin 18s Model 8 Watch Courtesy Wynter Sturtevant (Click on the image to get a larger view) If you want to learn more about how a watch is put together and works, the TimeZone web site has an excellent Illustrated Glossary of Watch Parts. While I'm not an expert, I believe the information on this page is correct. ... Here are some great diagrams of what the parts are inside your watch movement, so when others on the forum talk about a part being broken, you will be able to identify it here. Maciej Krh mechanizm schematy Dec 26, 2019 · Outer Watch Part Basics 101. Before we go over any movement options, let’s start with a rudimentary breakdown of a watch’s parts. The graphic below shows the elements that nearly every watch will have. Case. The case holds the inner working parts of the watch.

Quartz Watch Movement Parts Carignan Watch Company

Rotor Attached to the watch movement, the rotor rotates freely to wind the mainspring and store power in automatic timepieces. Dial A plate with a metal base that is visible through a crystal and carries certain indication such as the hours, minutes and sometimes seconds. Strap A strip or band of leather or rubber that holds the watch to the wrist.

This Rolex watch diagram shows the Rolex dial, Rolex bezel, Rolex crown, Rolex crystal, hands, and lugs.

Parts Of A Watch 101 Guide To Part Names Inside Out

Jul 24, 2020 · The movement of the rotor rotates the central staff, which is attached to the winding mechanism; automatically self-winding the watch, without the need for the user to rotate the crown. Setting jumper & lever – Two components that combine to form a mechanism that requires the crown to be pulled out before manipulation.

Custom Watch Manufacturer China Watches Factory China Watches Manufacturer

Mechanical watches have no battery, microchip, or circuitry. Watch parts are machined to near perfection at microscopic sizes and tolerances and can produce accuracy within 2 - 3 seconds per day. Escapement Wheel train Mainspring Basic functionality Power i

Elgin Diagram Of An Elgin Watch

Esslinger and Company is a watch parts supplier and distributor and we stock many popular brand names including: Seiko, Bulova, Casio, Omega, Pulsar, and more. Our vast inventory includes watch batteries, quartz watch movements, watch crowns, stems, watch crystals, watch bands, generic Rolex parts, and much more.

How To Keep Up In A Watch Conversation His Style Diary

Otto Frei web site www.ofrei.com, created by Bob Frei contains over 18,000 items for the watch, clock and Jewelry industry. Otto Frei, Oakland Ca. was founded by Alice and Otto Frei in 1930. Alice Frei was a hairspring vibrator and Otto Frei was a watchmaker and they began by fixing watches and selling watch parts to local jewelers and watch repair person in the Oakland - San Francisco Bay Area.

Jul 27, 2018 · Watch Parts Diagram Crystal A protective component, the crystal prevents dust, dirt and other particles from settling into a watch’s dial and hands while allowing the wearer to see the time. “Crystal” may mean “plastic” for some watches even though the function is the same.

Basic Movement Components

Even in today's environment of digital phones, devices and watches it's nice having wall clocks in the house. We have two and I glance at them all the time for the time. Here are 2 great illustrations that show you the anatomy of a wall clock including setting out the different parts of a wall clock.

Diagram Of A Watch Timepiece Anatomy Wixon Jewelers

A watch mechanism can be divided into two or three different sections depending on function. These are called "Bridges". The Mainspring Barrel can be housed in the Barrel Bridge, whilst the Balance Wheel sometimes housed separately in the Balance Bridge. C Case The metal part of the watch that houses the movement.

Diagram Of Rolex Watch Parts Mens Watches Citizen Rolex Watches Cool Watches

The diagram below shows the typical gear train of a watch. The escapement of a watch begins with the escape wheel. Next you will have the pallet. The pallet makes contact with the balance wheel as shown in the diagram. The balance wheel swings back and forth and with each swing locks and unlocks the pallet as it engages the escape wheel.

Watch Anatomy 12 Key Parts To Know Blog

Also known as the face, the dial is the portion of the watch that displays the time. It can come in several different colors and marker combinations. Hand The hands are the markers on the dial that indicate time. Most watches have at least three hands to show hours, minutes, and seconds. Hour Marker

Watch 101 Hodinkee

#100 Main Plate #105 Barrel Bridge #110 Train Wheel Bridge #121/3 Balance Bridge for Regulator #125 Pallet Bridge #145 Dial Support #161 Centre Tube #180/1 Movement Barrel, complete #182 Barrel (drum & cover) #190 #195 Barrel Arbor #203 Intermediate Wheel #210 Third Wheel #227 Second Wheel #242 Cannon Pinion with Driver #255 Hour Wheel
